| Mfr. #: | UC2841N |
|---|---|
| メーカー: | Texas Instruments |
| 説明: | Switching Controllers Prog Off-Line PWM Controlle |
| ライフサイクル: | メーカー新製品 |
| データシート: | UC2841N データシート |
Product belongs to the UC2841 series. Tube is the packaging method for this product Weight of 0.042544 oz Through Hole Mounting-Style PDIP-18 Operational temperature range: -25°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Down, Step-Up/Step-Down. Supplier device package: 18-PDIP Number-of-Outputs: 1 Topology: Buck, Boost, Flyback, Forward Converter feedback Supply Voltage: 8 V ~ 32 V This product features 'Frequency-Switching' at 500kHz for optimal performance. The Control-Features include Current Limit, Enable, Frequency Control, Ramp, Reset, Soft Start function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 95 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 85 C Minimum operating temperature: - 20 C Output current: 1000 mA Switching frequency is 450 kHz
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

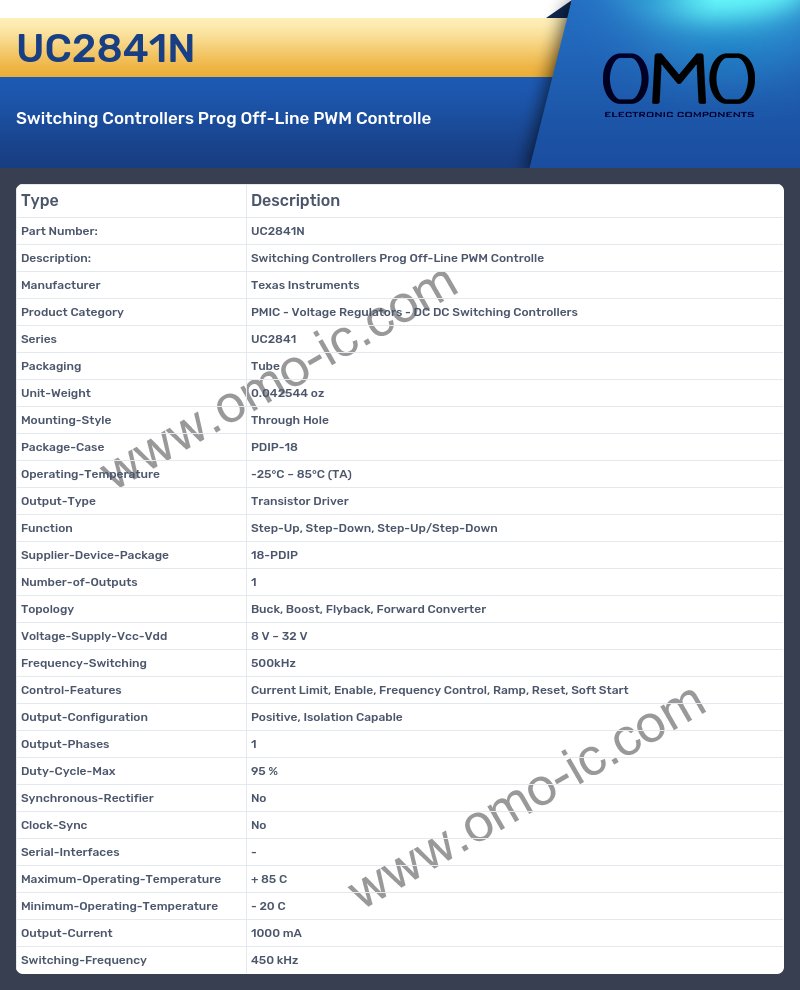

UC2841N Specifications
A: Is the cutoff frequency of the product Series?
Q: Yes, the product's Series is indeed UC2841
A: What is the Packaging of the product?
Q: The Packaging of the product is Tube.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.042544 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is Through Hole.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is PDIP-18.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -25°C ~ 85°C (TA).
A: Is the cutoff frequency of the product Output-Type?
Q: Yes, the product's Output-Type is indeed Transistor Driver
A: At what frequency does the Function?
Q: The product Function is Step-Up, Step-Down, Step-Up/Step-Down.
A: At what frequency does the Supplier-Device-Package?
Q: The product Supplier-Device-Package is 18-PDIP.
A: Is the cutoff frequency of the product Number-of-Outputs?
Q: Yes, the product's Number-of-Outputs is indeed 1
A: Is the cutoff frequency of the product Topology?
Q: Yes, the product's Topology is indeed Buck, Boost, Flyback, Forward Converter
A: Is the cutoff frequency of the product Voltage-Supply-Vcc-Vdd?
Q: Yes, the product's Voltage-Supply-Vcc-Vdd is indeed 8 V ~ 32 V
A: What is the Frequency-Switching of the product?
Q: The Frequency-Switching of the product is 500kHz.
A: Is the cutoff frequency of the product Control-Features?
Q: Yes, the product's Control-Features is indeed Current Limit, Enable, Frequency Control, Ramp, Reset, Soft Start
A: At what frequency does the Output-Configuration?
Q: The product Output-Configuration is Positive, Isolation Capable.
A: Is the cutoff frequency of the product Output-Phases?
Q: Yes, the product's Output-Phases is indeed 1
A: What is the Duty-Cycle-Max of the product?
Q: The Duty-Cycle-Max of the product is 95 %.
A: What is the Synchronous-Rectifier of the product?
Q: The Synchronous-Rectifier of the product is No.
A: What is the Clock-Sync of the product?
Q: The Clock-Sync of the product is No.
A: At what frequency does the Serial-Interfaces?
Q: The product Serial-Interfaces is -.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 85 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 20 C.
A: Is the cutoff frequency of the product Output-Current?
Q: Yes, the product's Output-Current is indeed 1000 mA
A: What is the Switching-Frequency of the product?
Q: The Switching-Frequency of the product is 450 kHz.
