UC3706DW

UC3706DW Overview

Product belongs to the UC3706 series. This product is categorized as MOSFET Gate Drivers Type: Inverting Non-Inverting Tube is the packaging method for this product Weight of 0.016709 oz SMD/SMT Mounting-Style Configuration Inverting Non-Inverting Number-of-Outputs: 2 Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 5 mA is 92 nA. Output current: 1.5 A This product has a 30 ns of 16 ns. This product has a 40 ns of 16 ns. Maximum supply voltage of 40 V Minimum supply voltage is 5 V SOIC-16 Wide Number-of-Drivers: 2 Driver

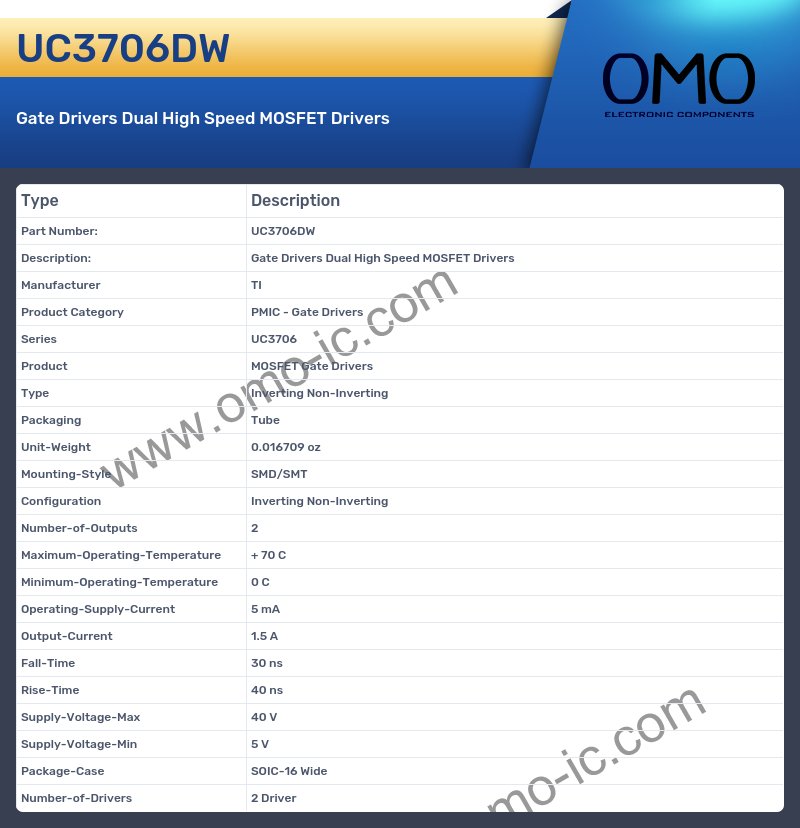

UC3706DW Image

UC3706DW Specifications

• Manufacturer TI
• Product Category PMIC - Gate Drivers
• Series UC3706
• Product MOSFET Gate Drivers
• Type Inverting Non-Inverting
• Packaging Tube
• Unit-Weight 0.016709 oz
• Mounting-Style SMD/SMT
• Configuration Inverting Non-Inverting
• Number-of-Outputs 2
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 5 mA
• Output-Current 1.5 A
• Fall-Time 30 ns
• Rise-Time 40 ns
• Supply-Voltage-Max 40 V
• Supply-Voltage-Min 5 V
• Package-Case SOIC-16 Wide
• Number-of-Drivers 2 Driver
