UC3710T

UC3710T Overview

Product belongs to the UC3710 series. Type: High Speed Tube is the packaging method for this product Weight of 0.068079 oz Through Hole Mounting-Style Configuration Inverting Non-Inverting Number-of-Outputs: 1 Power-off control: 3000 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 35 mA is 92 nA. Output current: 6 A This product has a 8 ns of 16 ns. This product has a 70 ns of 16 ns. Maximum supply voltage of 18 V Minimum supply voltage is 4.7 V TO-220-5 Number-of-Drivers: 1 Driver

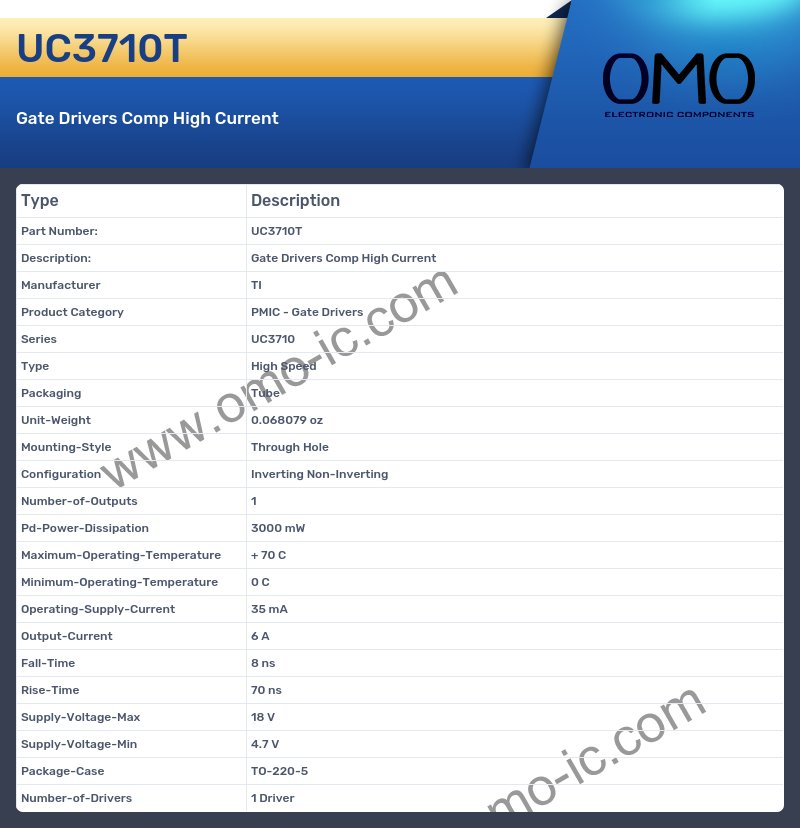

UC3710T Image

UC3710T Specifications

• Manufacturer TI
• Product Category PMIC - Gate Drivers
• Series UC3710
• Type High Speed
• Packaging Tube
• Unit-Weight 0.068079 oz
• Mounting-Style Through Hole
• Configuration Inverting Non-Inverting
• Number-of-Outputs 1
• Pd-Power-Dissipation 3000 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 35 mA
• Output-Current 6 A
• Fall-Time 8 ns
• Rise-Time 70 ns
• Supply-Voltage-Max 18 V
• Supply-Voltage-Min 4.7 V
• Package-Case TO-220-5
• Number-of-Drivers 1 Driver
