UC3903DWTR

UC3903DWTR Overview

Product belongs to the UC3903 series. Type: Multi-Voltage Supervisor Digi-ReelR Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style SOIC-18 Operational temperature range: 0°C ~ 70°C (TA) Surface Mount mounting type Output-Type: Open Collector / Drain Supplier device package: 18-SOIC The Push-Pull, Totem Pole. This product's Active Low. This product has 4 monitored voltages. The reset timeout for this product is Adjustable/Selectable. This product's Adjustable/Selectable. Power-off control: 1000 mW Maximum operating temperature of + 70 C Minimum operating temperature: 0 C 7000 uA is 92 nA. Maximum supply voltage of 40 V Minimum supply voltage is 8 V This product includes No Watchdog This product's Adjustable is 2.32 V. This product can only 4 Input at a time. This product features a No Manual Reset function that allows for manual reset. The product's Adjustable is 200 ms. The Adjustable is 2.35 V. Adjustable is set to 2.29 V.

UC3903DWTR Image

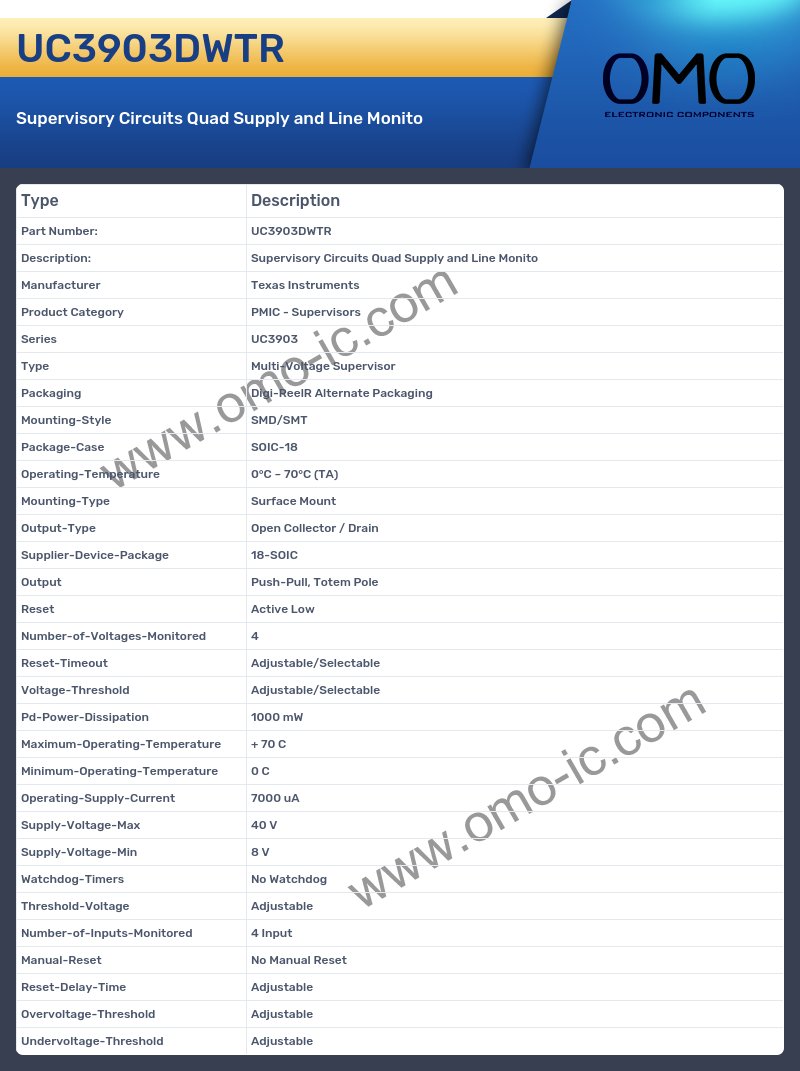

UC3903DWTR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Supervisors
• Series UC3903
• Type Multi-Voltage Supervisor
• Packaging Digi-ReelR Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case SOIC-18
• Operating-Temperature 0°C ~ 70°C (TA)
• Mounting-Type Surface Mount
• Output-Type Open Collector / Drain
• Supplier-Device-Package 18-SOIC
• Output Push-Pull, Totem Pole
• Reset Active Low
• Number-of-Voltages-Monitored 4
• Reset-Timeout Adjustable/Selectable
• Voltage-Threshold Adjustable/Selectable
• Pd-Power-Dissipation 1000 mW
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Operating-Supply-Current 7000 uA
• Supply-Voltage-Max 40 V
• Supply-Voltage-Min 8 V
• Watchdog-Timers No Watchdog
• Threshold-Voltage Adjustable
• Number-of-Inputs-Monitored 4 Input
• Manual-Reset No Manual Reset
• Reset-Delay-Time Adjustable
• Overvoltage-Threshold Adjustable
• Undervoltage-Threshold Adjustable
