| Mfr. #: | UCC25702DTR |
|---|---|
| メーカー: | Texas Instruments |
| 説明: | Switching Controllers Adv Voltage Mode |
| ライフサイクル: | メーカー新製品 |
| データシート: | UCC25702DTR データシート |
Product belongs to the UCC25702 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.004318 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: -40°C ~ 85°C (TA) Output-Type: Transistor Driver Product function is Step-Up, Step-Up/Step-Down. Supplier device package: 14-SOIC Number-of-Outputs: 1 Topology: Boost, Flyback, Forward Converter feedback Supply Voltage: 8.8 V ~ 15 V This product features 'Frequency-Switching' at 100kHz for optimal performance. The Control-Features include Current Limit, Frequency Control, Sequencing, Soft Start function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 99 % The value of No is included as a product attribute. Yes enabled Serial Interfaces: - Maximum operating temperature of + 85 C Minimum operating temperature: - 40 C Output current: 1000 mA Switching frequency is 700 kHz This product has a 20 ns of 16 ns. This product has a 20 ns of 16 ns.
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

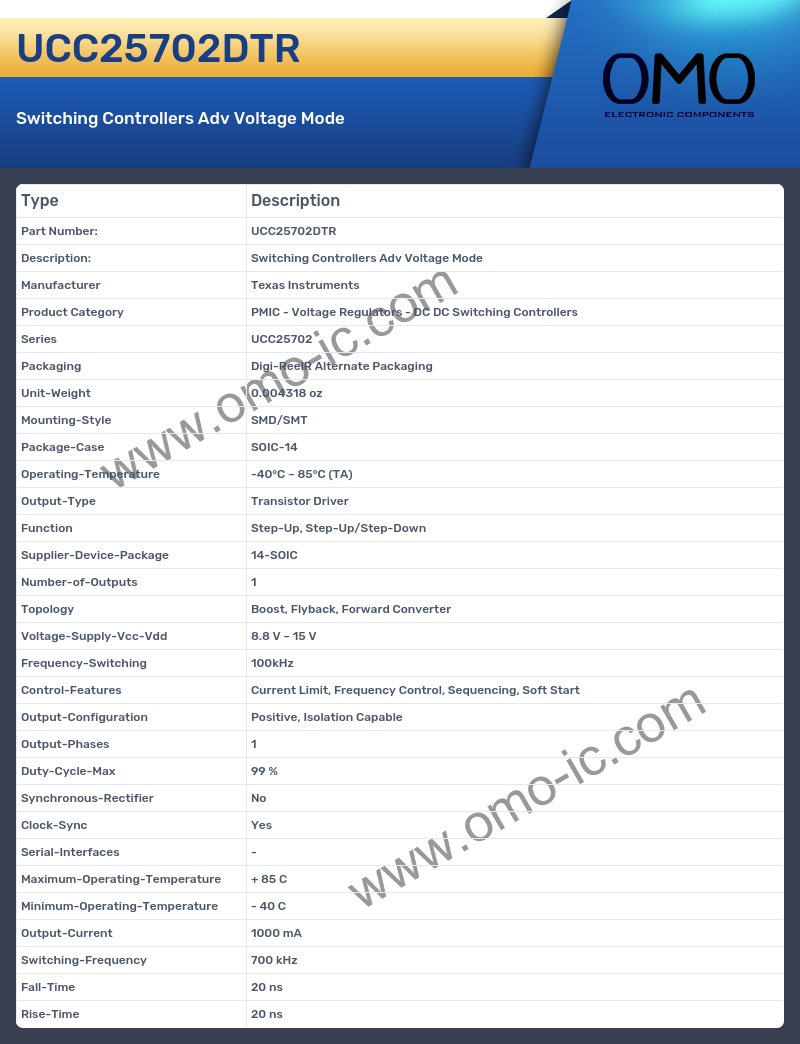

UCC25702DTR Specifications
A: At what frequency does the Series?
Q: The product Series is UCC25702.
A: At what frequency does the Packaging?
Q: The product Packaging is Digi-ReelR Alternate Packaging.
A: What is the Unit-Weight of the product?
Q: The Unit-Weight of the product is 0.004318 oz.
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SOIC-14.
A: Is the cutoff frequency of the product Operating-Temperature?
Q: Yes, the product's Operating-Temperature is indeed -40°C ~ 85°C (TA)
A: What is the Output-Type of the product?
Q: The Output-Type of the product is Transistor Driver.
A: Is the cutoff frequency of the product Function?
Q: Yes, the product's Function is indeed Step-Up, Step-Up/Step-Down
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed 14-SOIC
A: At what frequency does the Number-of-Outputs?
Q: The product Number-of-Outputs is 1.
A: At what frequency does the Topology?
Q: The product Topology is Boost, Flyback, Forward Converter.
A: At what frequency does the Voltage-Supply-Vcc-Vdd?
Q: The product Voltage-Supply-Vcc-Vdd is 8.8 V ~ 15 V.
A: At what frequency does the Frequency-Switching?
Q: The product Frequency-Switching is 100kHz.
A: At what frequency does the Control-Features?
Q: The product Control-Features is Current Limit, Frequency Control, Sequencing, Soft Start.
A: What is the Output-Configuration of the product?
Q: The Output-Configuration of the product is Positive, Isolation Capable.
A: Is the cutoff frequency of the product Output-Phases?
Q: Yes, the product's Output-Phases is indeed 1
A: At what frequency does the Duty-Cycle-Max?
Q: The product Duty-Cycle-Max is 99 %.
A: Is the cutoff frequency of the product Synchronous-Rectifier?
Q: Yes, the product's Synchronous-Rectifier is indeed No
A: What is the Clock-Sync of the product?
Q: The Clock-Sync of the product is Yes.
A: At what frequency does the Serial-Interfaces?
Q: The product Serial-Interfaces is -.
A: What is the Maximum-Operating-Temperature of the product?
Q: The Maximum-Operating-Temperature of the product is + 85 C.
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 40 C.
A: What is the Output-Current of the product?
Q: The Output-Current of the product is 1000 mA.
A: At what frequency does the Switching-Frequency?
Q: The product Switching-Frequency is 700 kHz.
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 20 ns.
A: Is the cutoff frequency of the product Rise-Time?
Q: Yes, the product's Rise-Time is indeed 20 ns
