UCC3583DTR

UCC3583DTR Overview

Product belongs to the UCC3583 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.004318 oz SMD/SMT Mounting-Style SOIC-14 Operational temperature range: 0°C ~ 70°C * mounting type Versatile Secondary-Side Controller applications for maximum usability Voltage Supply Range: 8.9 V ~ 14 V Supplier device package: 14-SOICN - voltage input This product has a 3mA of 200μA. Number-of-Outputs: 1 Output Topology: Secondary Side Regulator feedback Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Switching frequency is 500 kHz Maximum duty cycle of 95 %

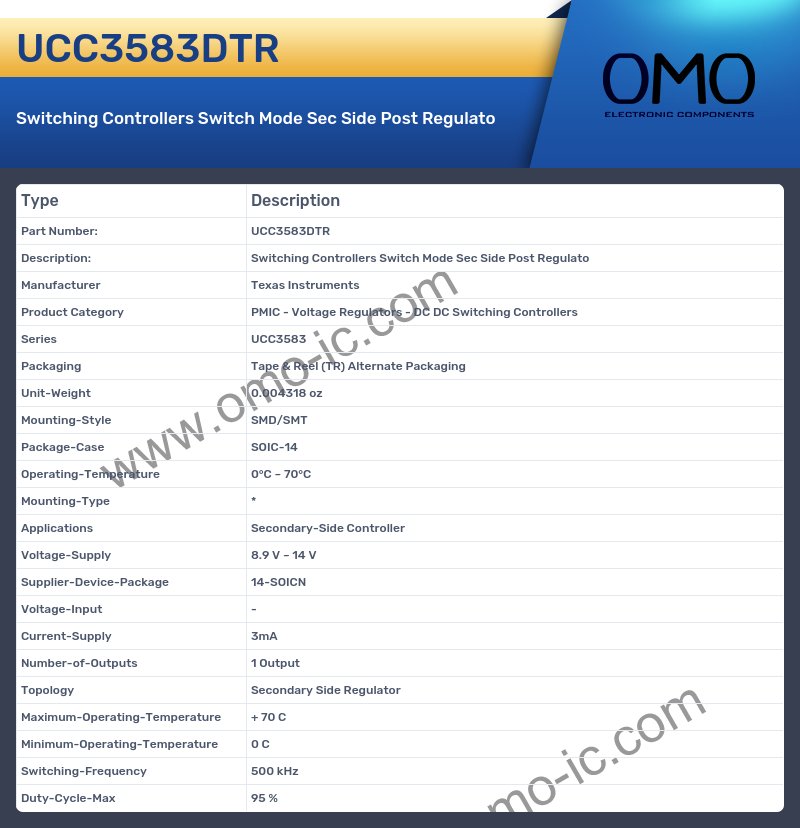

UCC3583DTR Image

UCC3583DTR Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCC3583
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.004318 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-14
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type *
• Applications Secondary-Side Controller
• Voltage-Supply 8.9 V ~ 14 V
• Supplier-Device-Package 14-SOICN
• Voltage-Input -
• Current-Supply 3mA
• Number-of-Outputs 1 Output
• Topology Secondary Side Regulator
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Switching-Frequency 500 kHz
• Duty-Cycle-Max 95 %
