| Mfr. #: | UCC3802DTR |
|---|---|
| メーカー: | Texas Instruments |
| 説明: | Switching Controllers Low-Power BiCMOS Current-Mode PWM |
| ライフサイクル: | メーカー新製品 |
| データシート: | UCC3802DTR データシート |
Product belongs to the UCC3802 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: -40°C ~ 85°C (TA) Surface Mount mounting type Supplier device package: 8-SOIC Number-of-Outputs: 1 Output Output-Isolation: - This product has No. Topology: Boost, Buck, Flyback, Forward feedback Supply Voltage: 8.3 V ~ 12 V This product features 'Frequency-Switching' at Up to 1MHz for optimal performance. The Control-Features include Frequency Control function. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output current: 1000 mA Switching frequency is 1000 kHz This product has a 44 ns of 16 ns. This product has a 41 ns of 16 ns. Maximum duty cycle of 100 %
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

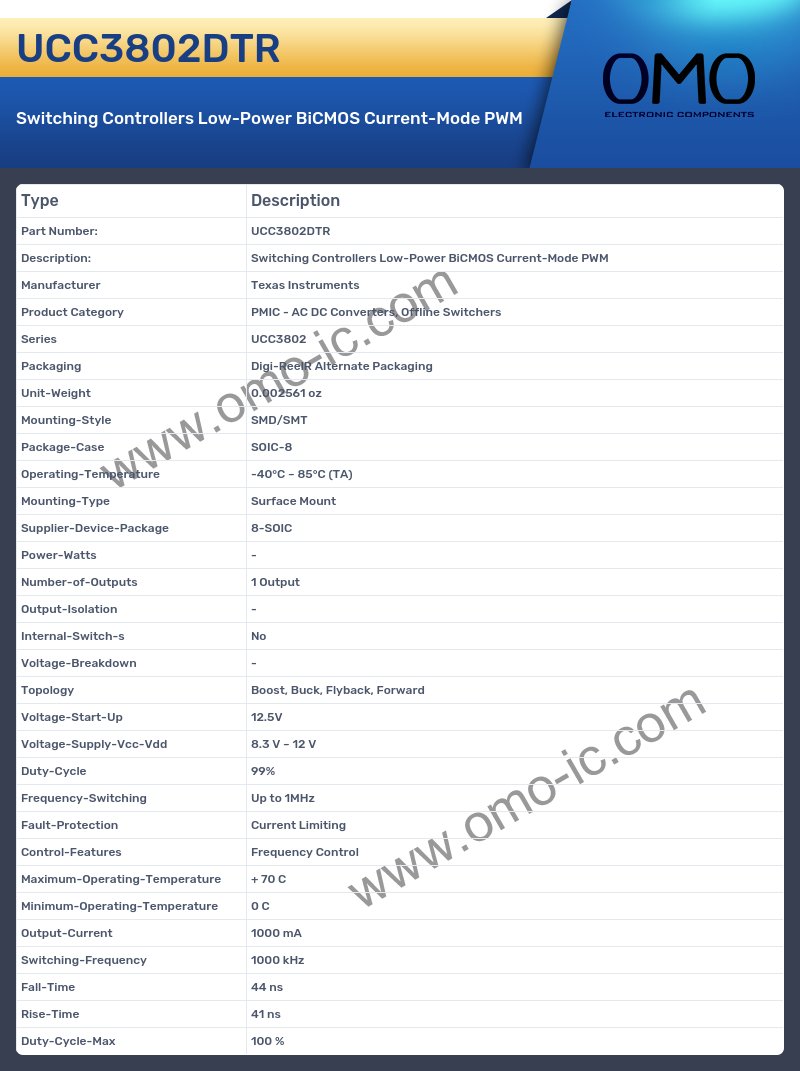

UCC3802DTR Specifications
A: What is the Series of the product?
Q: The Series of the product is UCC3802.
A: What is the Packaging of the product?
Q: The Packaging of the product is Digi-ReelR Alternate Packaging.
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.002561 oz
A: What is the Mounting-Style of the product?
Q: The Mounting-Style of the product is SMD/SMT.
A: What is the Package-Case of the product?
Q: The Package-Case of the product is SOIC-8.
A: What is the Operating-Temperature of the product?
Q: The Operating-Temperature of the product is -40°C ~ 85°C (TA).
A: What is the Mounting-Type of the product?
Q: The Mounting-Type of the product is Surface Mount.
A: What is the Supplier-Device-Package of the product?
Q: The Supplier-Device-Package of the product is 8-SOIC.
A: At what frequency does the Number-of-Outputs?
Q: The product Number-of-Outputs is 1 Output.
A: At what frequency does the Output-Isolation?
Q: The product Output-Isolation is -.
A: At what frequency does the Internal-Switch-s?
Q: The product Internal-Switch-s is No.
A: Is the cutoff frequency of the product Topology?
Q: Yes, the product's Topology is indeed Boost, Buck, Flyback, Forward
A: Is the cutoff frequency of the product Voltage-Supply-Vcc-Vdd?
Q: Yes, the product's Voltage-Supply-Vcc-Vdd is indeed 8.3 V ~ 12 V
A: What is the Frequency-Switching of the product?
Q: The Frequency-Switching of the product is Up to 1MHz.
A: What is the Control-Features of the product?
Q: The Control-Features of the product is Frequency Control.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 70 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is 0 C.
A: At what frequency does the Output-Current?
Q: The product Output-Current is 1000 mA.
A: At what frequency does the Switching-Frequency?
Q: The product Switching-Frequency is 1000 kHz.
A: What is the Fall-Time of the product?
Q: The Fall-Time of the product is 44 ns.
A: At what frequency does the Rise-Time?
Q: The product Rise-Time is 41 ns.
A: Is the cutoff frequency of the product Duty-Cycle-Max?
Q: Yes, the product's Duty-Cycle-Max is indeed 100 %
