UCC384DPTR-12

UCC384DPTR-12 Overview

Product belongs to the UCC384-12 series. Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.002561 oz SMD/SMT Mounting-Style SOIC-8 Operational temperature range: 0°C ~ 70°C Surface Mount mounting type Output-Type: Fixed Supplier device package: 8-SOIC Down to -15V voltage input Number-of-Outputs: 1 Output Output voltage: -12V Negative Fixed regulator topology The product has 1 of 1. Maximum operating temperature of + 70 C Minimum operating temperature: 0 C Output voltage: - 12 V Maximum Input Voltage: - 15 V Output current: 500 mA The product's - 12.5 V is 5.1 V. Load regulation is 0.3 %. The voltage regulation accuracy of this product is 2.5 %. Input bias current of 220 uA This product has a 350 uA of 7 mA, making it ideal for low-power applications. The 0.15 V at 500 mA. The maximum 500 mV at 500 mA is 360 mV. This product's 15 mV is 0.01 %/V.

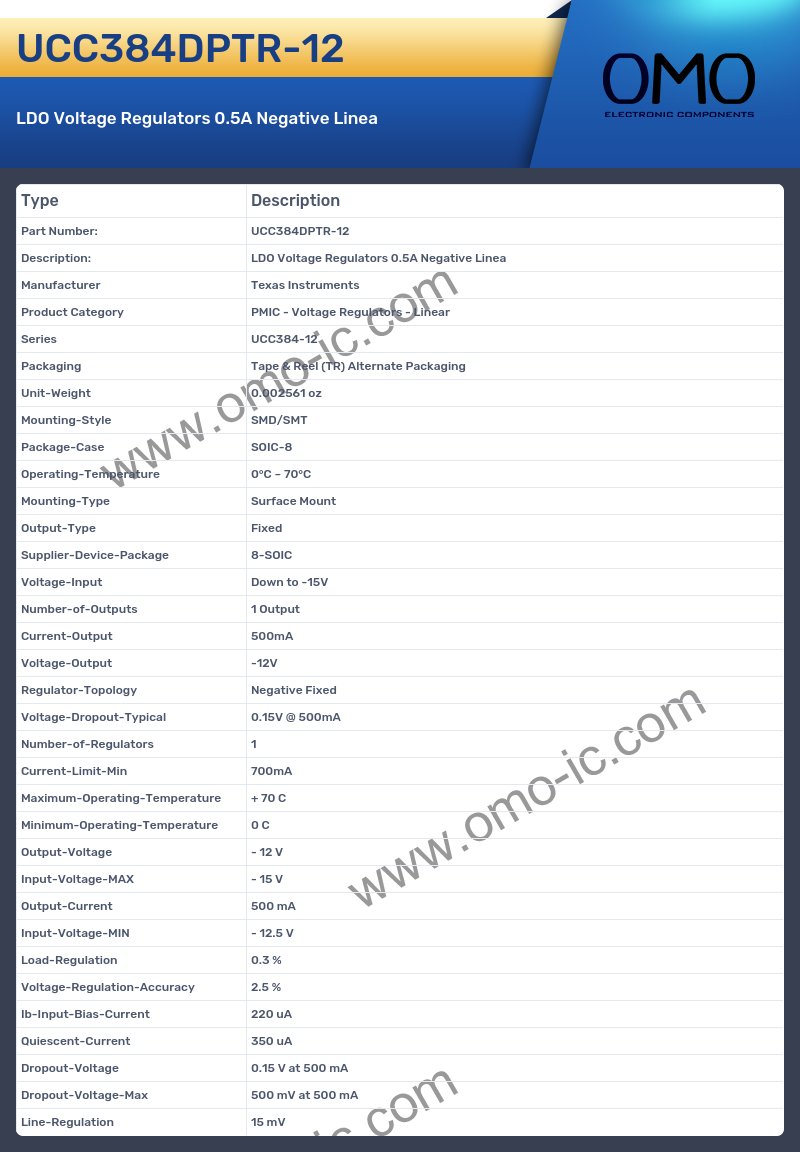

UCC384DPTR-12 Image

UCC384DPTR-12 Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - Linear
• Series UCC384-12
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.002561 oz
• Mounting-Style SMD/SMT
• Package-Case SOIC-8
• Operating-Temperature 0°C ~ 70°C
• Mounting-Type Surface Mount
• Output-Type Fixed
• Supplier-Device-Package 8-SOIC
• Voltage-Input Down to -15V
• Number-of-Outputs 1 Output
• Current-Output 500mA
• Voltage-Output -12V
• Regulator-Topology Negative Fixed
• Voltage-Dropout-Typical 0.15V @ 500mA
• Number-of-Regulators 1
• Current-Limit-Min 700mA
• Maximum-Operating-Temperature + 70 C
• Minimum-Operating-Temperature 0 C
• Output-Voltage - 12 V
• Input-Voltage-MAX - 15 V
• Output-Current 500 mA
• Input-Voltage-MIN - 12.5 V
• Load-Regulation 0.3 %
• Voltage-Regulation-Accuracy 2.5 %
• Ib-Input-Bias-Current 220 uA
• Quiescent-Current 350 uA
• Dropout-Voltage 0.15 V at 500 mA
• Dropout-Voltage-Max 500 mV at 500 mA
• Line-Regulation 15 mV
