UCD8220PWP

UCD8220PWP Overview

Product belongs to the UCD8220 series. Tube is the packaging method for this product Weight of 0.002212 oz SMD/SMT Mounting-Style HTSSOP-16 Operational temperature range: -40°C ~ 105°C (TA) Output-Type: Transistor Driver Product function is Step-Up/Step-Down. Supplier device package: 16-HTSSOP Number-of-Outputs: 2 Topology: Full-Bridge, Half-Bridge, Push-Pull feedback Supply Voltage: 4.5 V ~ 15.5 V This product features 'Frequency-Switching' at Up to 2MHz for optimal performance. The Control-Features include Current Limit function. The Positive, Isolation Capable. Output-Phases: 1 Maximum duty cycle of 96 % The value of No is included as a product attribute. No enabled Serial Interfaces: - Maximum operating temperature of + 105 C Minimum operating temperature: - 40 C This product operates at a 4.5 V to 15.5 V supply voltage for reliable performance. 3 mA is 92 nA. Switching frequency is 2000 kHz This product has a 10 ns of 16 ns. This product has a 10 ns of 16 ns.

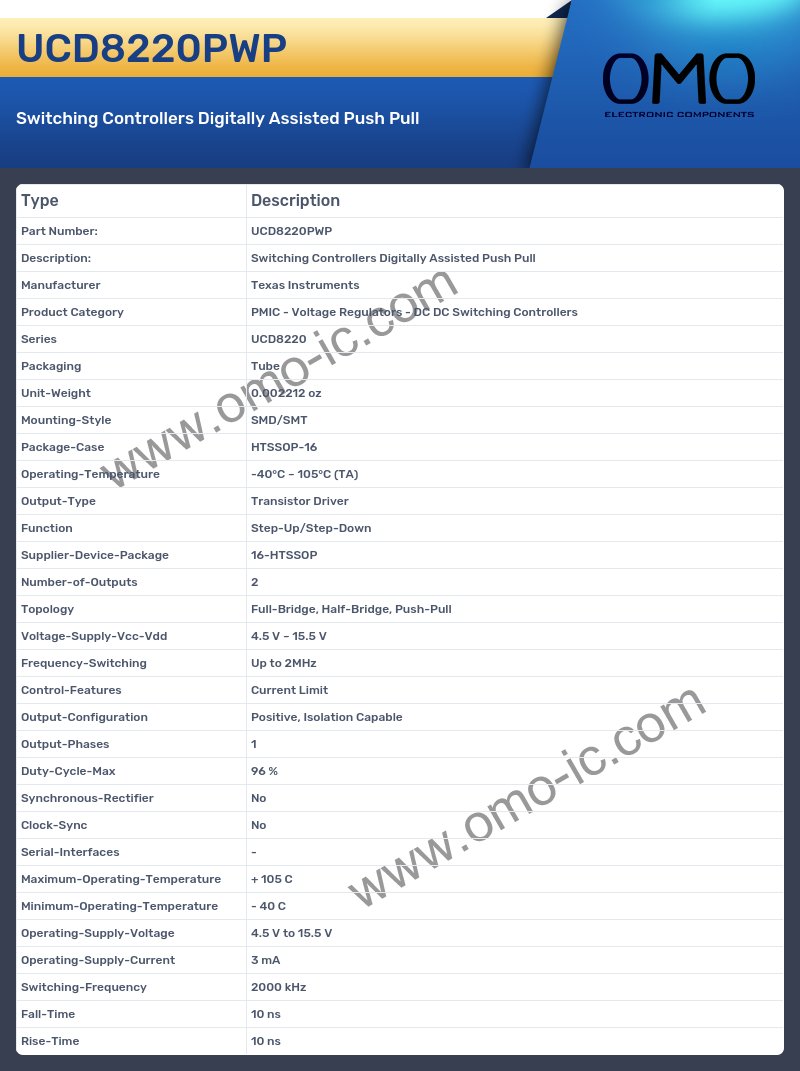

UCD8220PWP Image

UCD8220PWP Specifications

• Manufacturer Texas Instruments
• Product Category PMIC - Voltage Regulators - DC DC Switching Controllers
• Series UCD8220
• Packaging Tube
• Unit-Weight 0.002212 oz
• Mounting-Style SMD/SMT
• Package-Case HTSSOP-16
• Operating-Temperature -40°C ~ 105°C (TA)
• Output-Type Transistor Driver
• Function Step-Up/Step-Down
• Supplier-Device-Package 16-HTSSOP
• Number-of-Outputs 2
• Topology Full-Bridge, Half-Bridge, Push-Pull
• Voltage-Supply-Vcc-Vdd 4.5 V ~ 15.5 V
• Frequency-Switching Up to 2MHz
• Control-Features Current Limit
• Output-Configuration Positive, Isolation Capable
• Output-Phases 1
• Duty-Cycle-Max 96 %
• Synchronous-Rectifier No
• Clock-Sync No
• Serial-Interfaces -
• Maximum-Operating-Temperature + 105 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 4.5 V to 15.5 V
• Operating-Supply-Current 3 mA
• Switching-Frequency 2000 kHz
• Fall-Time 10 ns
• Rise-Time 10 ns
