VIPER26LD

VIPER26LD Overview

Product belongs to the VIPer plus series. Tube is the packaging method for this product Weight of 0.019312 oz SMD/SMT Mounting-Style Wide - 25 C to + 125 C operating temperature range for diverse applications SOIC-16 Narrow Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Supplier device package: 16-SO Number-of-Outputs: 1 Output Output-Isolation: Either This product has Yes. Topology: Flyback feedback Supply Voltage: 11.5 V ~ 23.5 V This product features 'Frequency-Switching' at 60kHz for optimal performance. The Control-Features include - function. Maximum operating temperature of + 125 C 600 uA is 92 nA. Output current: 1 A Switching frequency is 60 kHz Maximum duty cycle of 80 %

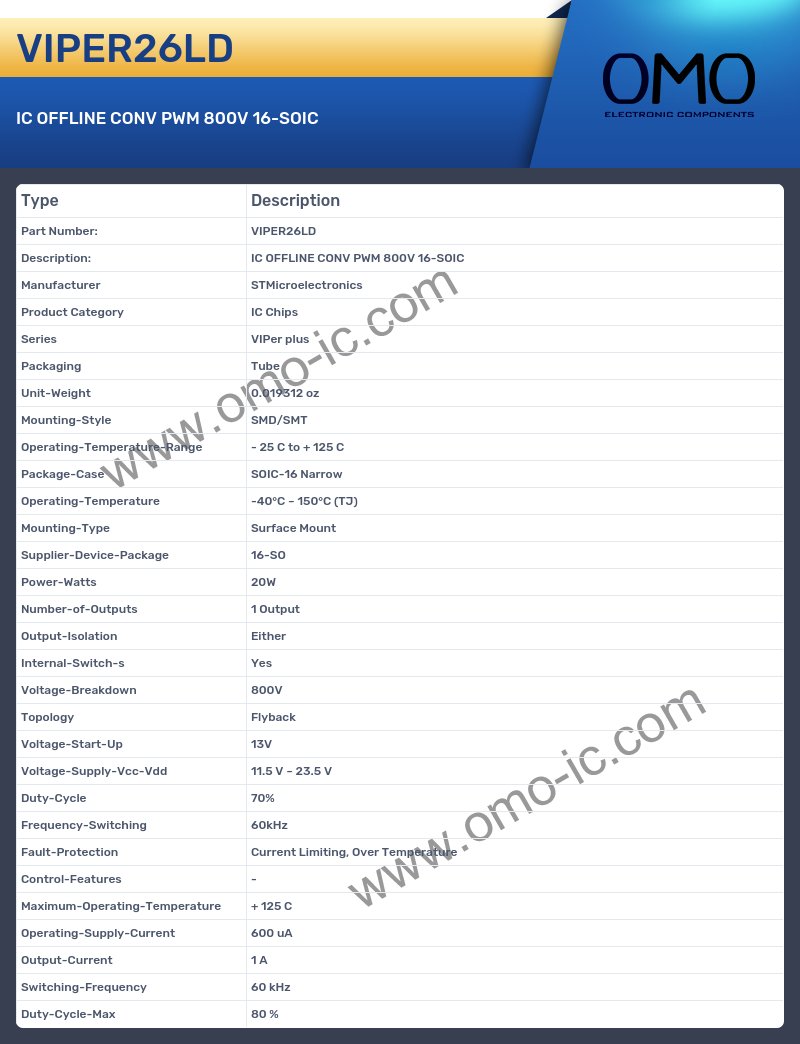

VIPER26LD Image

VIPER26LD Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series VIPer plus
• Packaging Tube
• Unit-Weight 0.019312 oz
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 25 C to + 125 C
• Package-Case SOIC-16 Narrow
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Supplier-Device-Package 16-SO
• Power-Watts 20W
• Number-of-Outputs 1 Output
• Output-Isolation Either
• Internal-Switch-s Yes
• Voltage-Breakdown 800V
• Topology Flyback
• Voltage-Start-Up 13V
• Voltage-Supply-Vcc-Vdd 11.5 V ~ 23.5 V
• Duty-Cycle 70%
• Frequency-Switching 60kHz
• Fault-Protection Current Limiting, Over Temperature
• Control-Features -
• Maximum-Operating-Temperature + 125 C
• Operating-Supply-Current 600 uA
• Output-Current 1 A
• Switching-Frequency 60 kHz
• Duty-Cycle-Max 80 %
