VIPER50A-E

VIPER50A-E Overview

Product belongs to the VIPER series. Type: PWM Low-Standby High Performance Controller Tube is the packaging method for this product Through Hole Mounting-Style Wide - 25 C to + 125 C operating temperature range for diverse applications Pentawatt HV Operational temperature range: - Through Hole mounting type Supplier device package: 5-PENTAWATT Number-of-Outputs: 1 Output Output-Isolation: Isolated This product has Yes. Topology: Flyback feedback Supply Voltage: 8 V ~ 15 V This product features 'Frequency-Switching' at Up to 200kHz for optimal performance. The Control-Features include Frequency Control, Soft Start, Sync function. Maximum operating temperature of + 125 C 12 mA is 92 nA. Output current: 1.5 A Switching frequency is 100 kHz Maximum duty cycle of 50 % This product requires a minimum 12.6 V of 2.95 V. This product has a maximum 13.4 V of 20 V.

VIPER50A-E Image

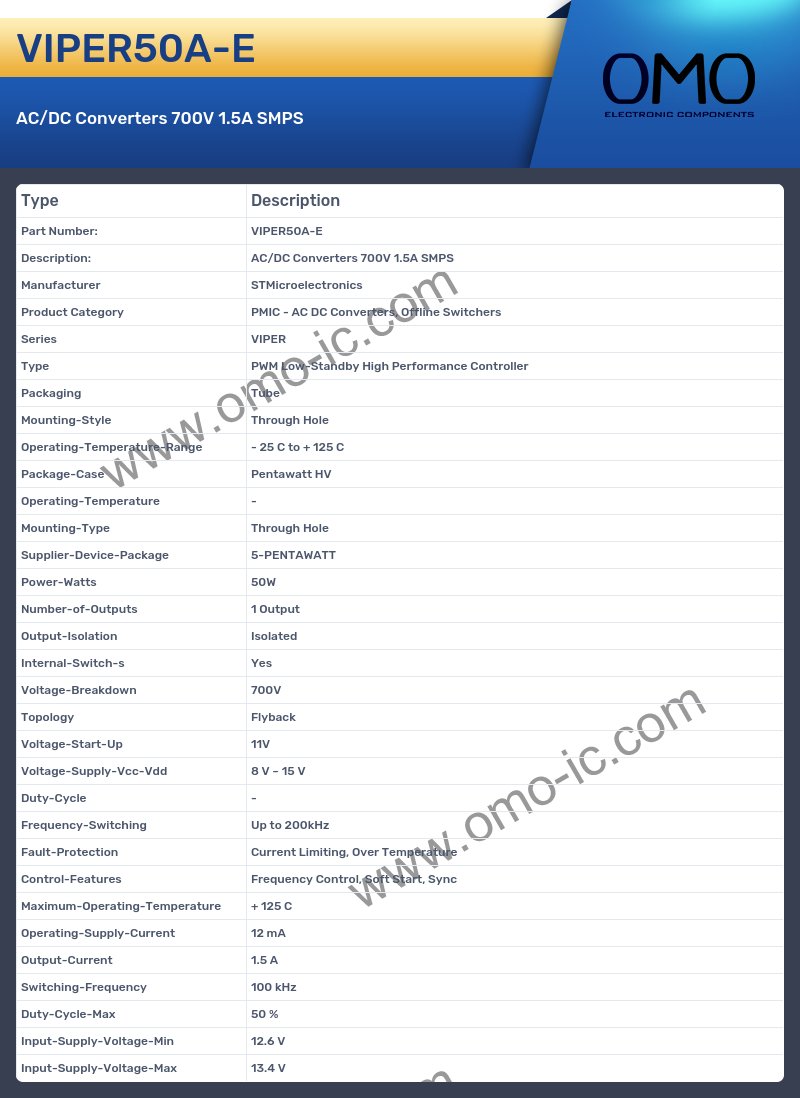

VIPER50A-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - AC DC Converters, Offline Switchers
• Series VIPER
• Type PWM Low-Standby High Performance Controller
• Packaging Tube
• Mounting-Style Through Hole
• Operating-Temperature-Range - 25 C to + 125 C
• Package-Case Pentawatt HV
• Operating-Temperature -
• Mounting-Type Through Hole
• Supplier-Device-Package 5-PENTAWATT
• Power-Watts 50W
• Number-of-Outputs 1 Output
• Output-Isolation Isolated
• Internal-Switch-s Yes
• Voltage-Breakdown 700V
• Topology Flyback
• Voltage-Start-Up 11V
• Voltage-Supply-Vcc-Vdd 8 V ~ 15 V
• Duty-Cycle -
• Frequency-Switching Up to 200kHz
• Fault-Protection Current Limiting, Over Temperature
• Control-Features Frequency Control, Soft Start, Sync
• Maximum-Operating-Temperature + 125 C
• Operating-Supply-Current 12 mA
• Output-Current 1.5 A
• Switching-Frequency 100 kHz
• Duty-Cycle-Max 50 %
• Input-Supply-Voltage-Min 12.6 V
• Input-Supply-Voltage-Max 13.4 V
