VN800PTTR-E

VN800PTTR-E Overview

Product belongs to the VIPower series. Type: High Side Tape & Reel (TR) Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style PPAK The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: PPAK The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The High Side. The 135 mOhm (Max). Voltage-Load range is 5.5 V ~ 36 V. Our product delivers a 700mA of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 41700 mW Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C 1.5 mA is 92 nA. Minimum supply voltage is 5.5 V

VN800PTTR-E Image

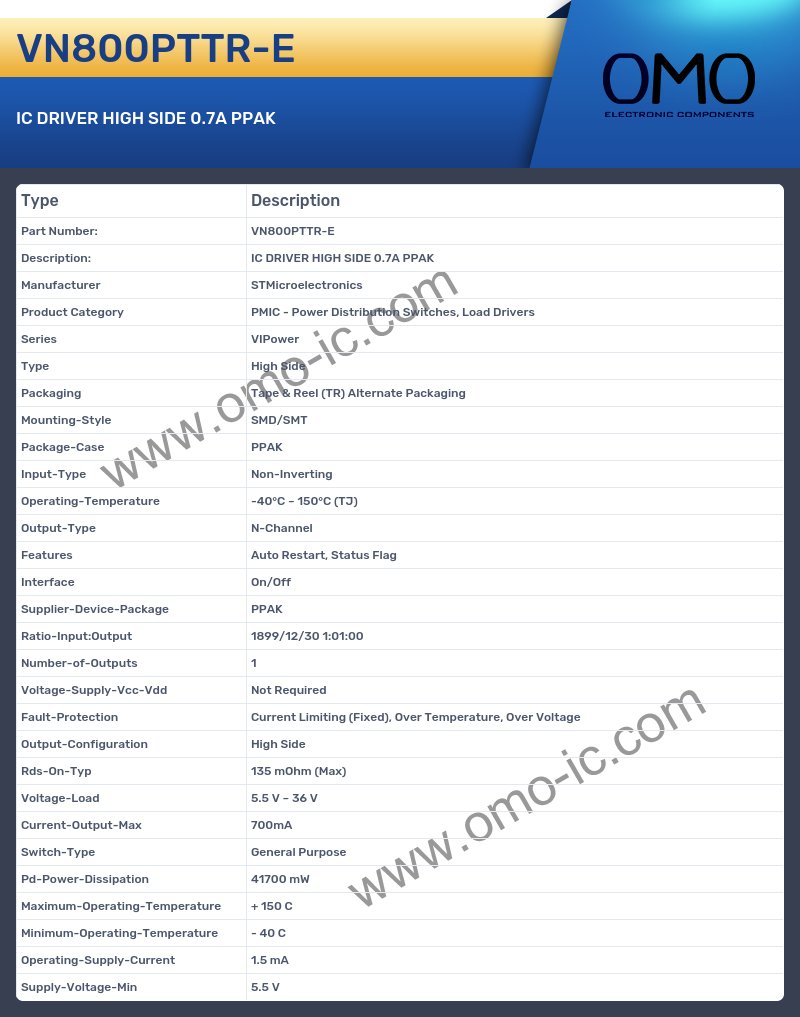

VN800PTTR-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series VIPower
• Type High Side
• Packaging Tape & Reel (TR) Alternate Packaging
• Mounting-Style SMD/SMT
• Package-Case PPAK
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features Auto Restart, Status Flag
• Interface On/Off
• Supplier-Device-Package PPAK
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, Over Voltage
• Output-Configuration High Side
• Rds-On-Typ 135 mOhm (Max)
• Voltage-Load 5.5 V ~ 36 V
• Current-Output-Max 700mA
• Switch-Type General Purpose
• Pd-Power-Dissipation 41700 mW
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 1.5 mA
• Supply-Voltage-Min 5.5 V
