VND7NV04TR-E Overview

Product belongs to the OMNIFET II, VIPower series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.139332 oz SMD/SMT Mounting-Style TO-252-3, DPak (2 Leads + Tab), SC-63 Si is the technology used. The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: D-Pak The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The Low Side. The 60 mOhm (Max). Voltage-Load range is 36V (Max). Our product delivers a 6A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 60 W This product has a 350 ns of 16 ns. This product has a 470 ns of 16 ns. The ID of continuous drain current is 6 A. This product has a Vds-Drain-Source-Breakdown-Voltageof 45 V. The 60 mOhms for this product is 12 Ohms. The transistor polarity is N-Channel. Qg-Gate-Charge is 18 nC. This product features a 9 S of 500 S for high performance.

VND7NV04TR-E Image

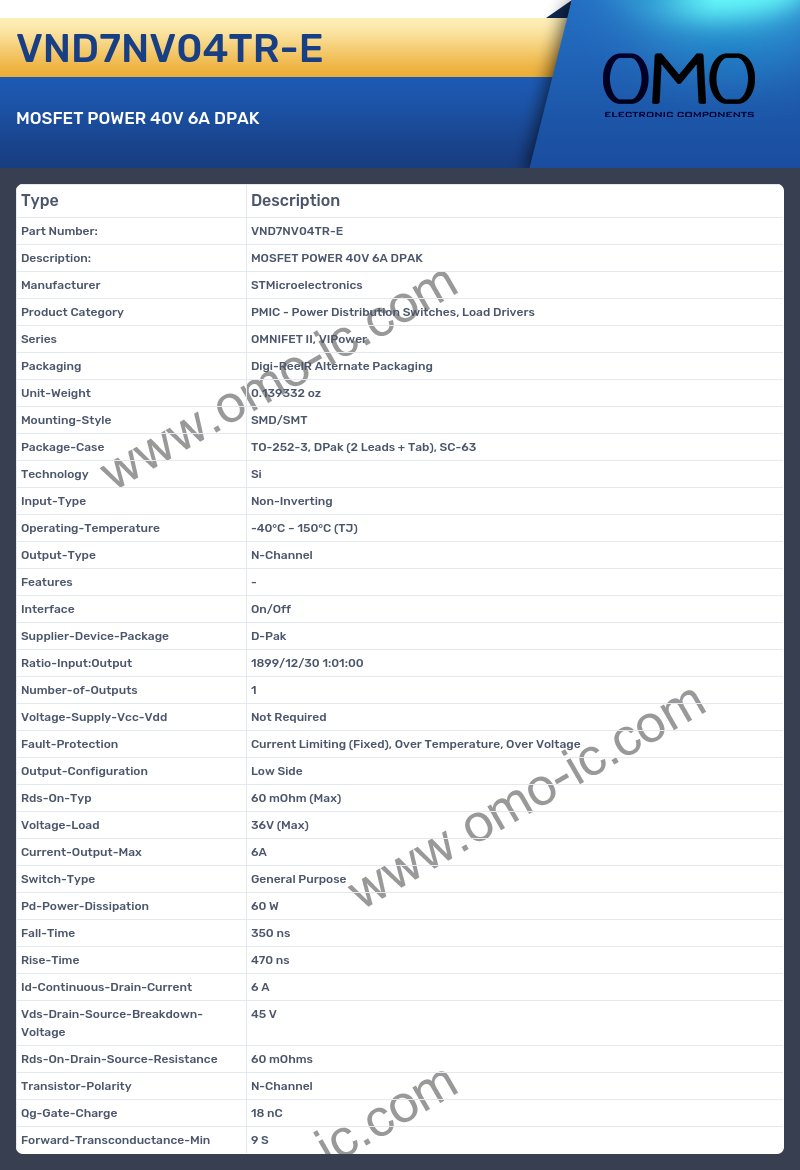

VND7NV04TR-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series OMNIFET II, VIPower
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.139332 oz
• Mounting-Style SMD/SMT
• Package-Case TO-252-3, DPak (2 Leads + Tab), SC-63
• Technology Si
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package D-Pak
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, Over Voltage
• Output-Configuration Low Side
• Rds-On-Typ 60 mOhm (Max)
• Voltage-Load 36V (Max)
• Current-Output-Max 6A
• Switch-Type General Purpose
• Pd-Power-Dissipation 60 W
• Fall-Time 350 ns
• Rise-Time 470 ns
• Id-Continuous-Drain-Current 6 A
• Vds-Drain-Source-Breakdown-Voltage 45 V
• Rds-On-Drain-Source-Resistance 60 mOhms
• Transistor-Polarity N-Channel
• Qg-Gate-Charge 18 nC
• Forward-Transconductance-Min 9 S
