VND830PTR-E

VND830PTR-E Overview

Product belongs to the VIPower series. This product is categorized as Power Switches Type: High Side Tape & Reel (TR) Alternate Packaging is the packaging method for this product Weight of 0.007079 oz SMD/SMT Mounting-Style SO-16 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 16-SO The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 2 Supply Voltage: Not Required The High Side. The 60 mOhm (Max). Voltage-Load range is 5.5 V ~ 36 V. Our product delivers a 6A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: 8.3 W Maximum operating temperature of + 150 C Minimum operating temperature: - 40 C This product operates at a 36 V supply voltage for reliable performance. Output current: 6 A Maximum supply voltage of 36 V Minimum supply voltage is 5.5 V Max on-resistance of 60 mOhms Maximum off time: 30 us Maximum on-time: 30 us

VND830PTR-E Image

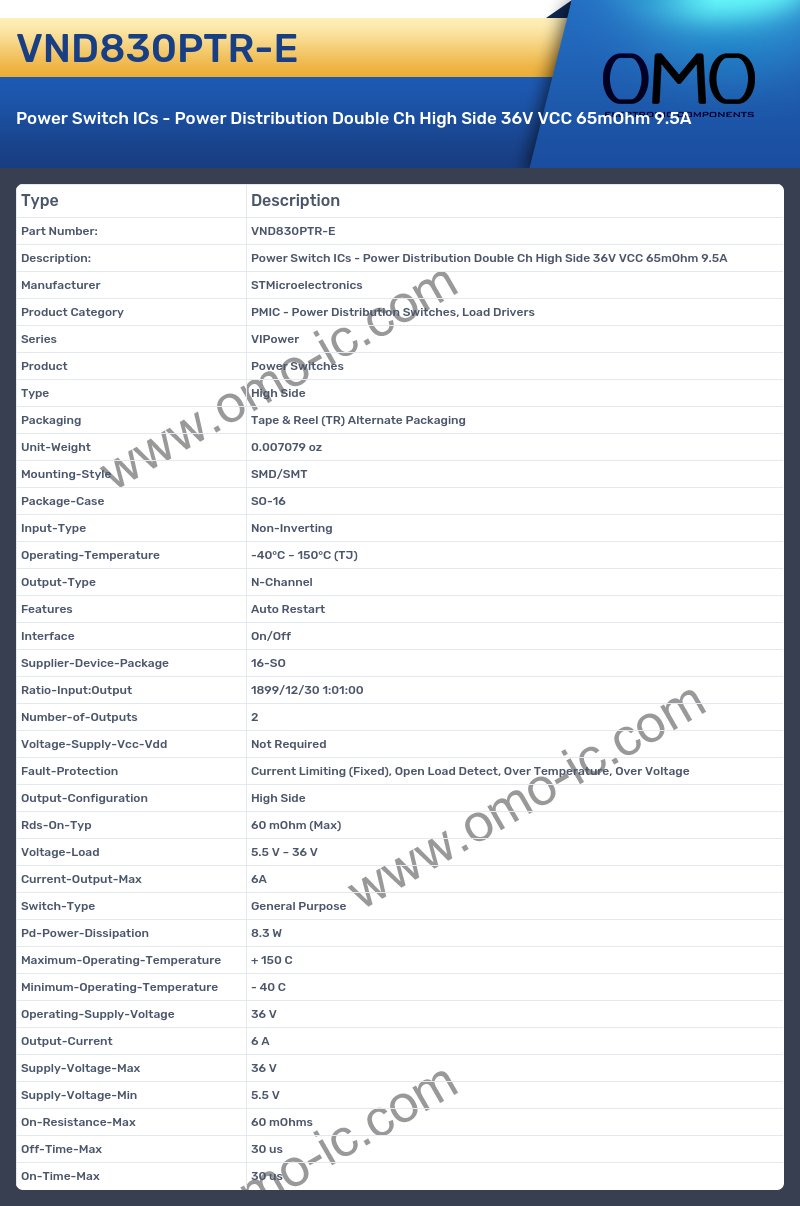

VND830PTR-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series VIPower
• Product Power Switches
• Type High Side
• Packaging Tape & Reel (TR) Alternate Packaging
• Unit-Weight 0.007079 oz
• Mounting-Style SMD/SMT
• Package-Case SO-16
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features Auto Restart
• Interface On/Off
• Supplier-Device-Package 16-SO
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 2
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
• Output-Configuration High Side
• Rds-On-Typ 60 mOhm (Max)
• Voltage-Load 5.5 V ~ 36 V
• Current-Output-Max 6A
• Switch-Type General Purpose
• Pd-Power-Dissipation 8.3 W
• Maximum-Operating-Temperature + 150 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Voltage 36 V
• Output-Current 6 A
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 5.5 V
• On-Resistance-Max 60 mOhms
• Off-Time-Max 30 us
• On-Time-Max 30 us
