VNH2SP30-E

VNH2SP30-E Overview

Product belongs to the STripFET, VIPower series. Type: Half Bridge Motor Driver Tube Alternate Packaging is the packaging method for this product SMD/SMT Mounting-Style Wide - 40 C to + 150 C operating temperature range for diverse applications MultiPowerSO-30 Power MOSFET is the technology used. Operational temperature range: -40°C ~ 150°C (TJ) Surface Mount mounting type Product function is Driver - Fully Integrated, Control and Power Stage. Versatile Automotive applications for maximum usability Interface: PWM Voltage Supply Range: 5.5 V ~ 16 V Supplier device package: MultiPowerSO-30 The Half Bridge (2). Voltage-Load range is 5.5 V ~ 16 V. Brushed DC motor type is used for high-performance and efficient operation. This product operates at a 5.5 V to 16 V supply voltage for reliable performance. 10 mA is 92 nA.

VNH2SP30-E Image

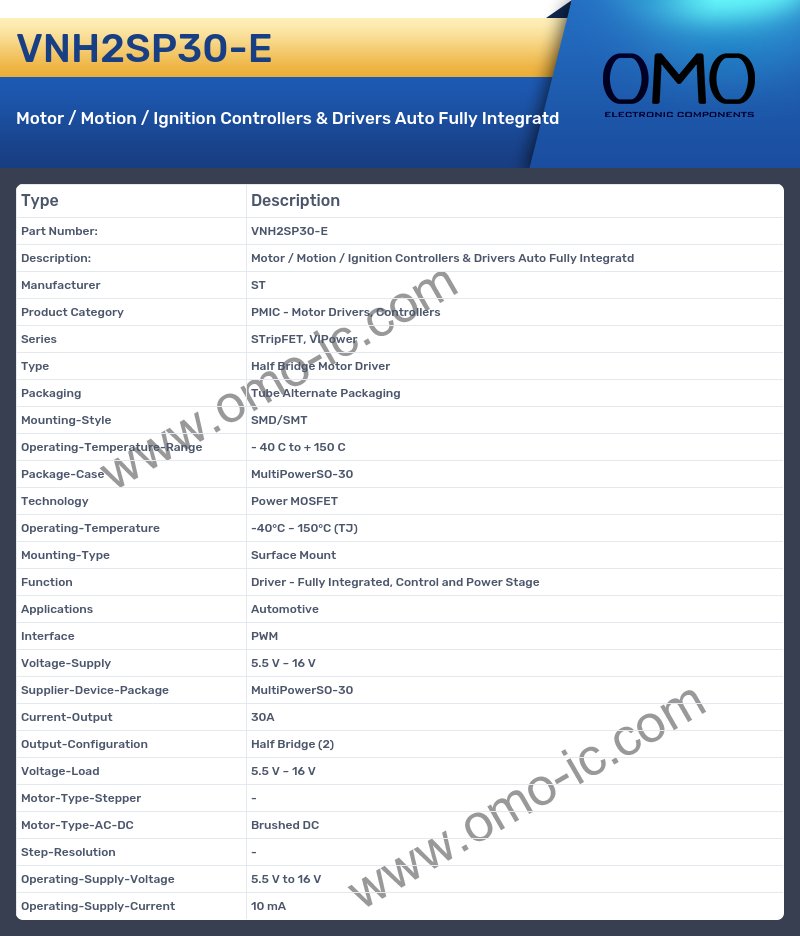

VNH2SP30-E Specifications

• Manufacturer ST
• Product Category PMIC - Motor Drivers, Controllers
• Series STripFET, VIPower
• Type Half Bridge Motor Driver
• Packaging Tube Alternate Packaging
• Mounting-Style SMD/SMT
• Operating-Temperature-Range - 40 C to + 150 C
• Package-Case MultiPowerSO-30
• Technology Power MOSFET
• Operating-Temperature -40°C ~ 150°C (TJ)
• Mounting-Type Surface Mount
• Function Driver - Fully Integrated, Control and Power Stage
• Applications Automotive
• Interface PWM
• Voltage-Supply 5.5 V ~ 16 V
• Supplier-Device-Package MultiPowerSO-30
• Current-Output 30A
• Output-Configuration Half Bridge (2)
• Voltage-Load 5.5 V ~ 16 V
• Motor-Type-Stepper -
• Motor-Type-AC-DC Brushed DC
• Step-Resolution -
• Operating-Supply-Voltage 5.5 V to 16 V
• Operating-Supply-Current 10 mA
