VNI4140K-32 Overview

Product belongs to the VIPower series. This product is categorized as Relay Drivers Type: High-Side Driver Tube is the packaging method for this product SMD/SMT Mounting-Style PowerSSO-24 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 125°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: PowerSSO-24 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Configuration Non-Inverting Number-of-Outputs: 4 Supply Voltage: Not Required The High Side. The 80 mOhm (Max). Voltage-Load range is 10.5 V ~ 36 V. Our product delivers a 1A of 50mA for efficient power management. The Switch-Type is General Purpose. Power-off control: Yes Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 2.4 mA is 92 nA. Output current: 1 A This product has a 5 us of 16 ns. This product has a 5 us of 16 ns. The 0.08 Ohms for this product is 12 Ohms. Maximum supply voltage of 36 V Minimum supply voltage is 10.5 V Number-of-Drivers: 4 Driver This product has a Maximum-Turn-Off-Delay-Time of 12 us. 6 us maximum turn-on delay time

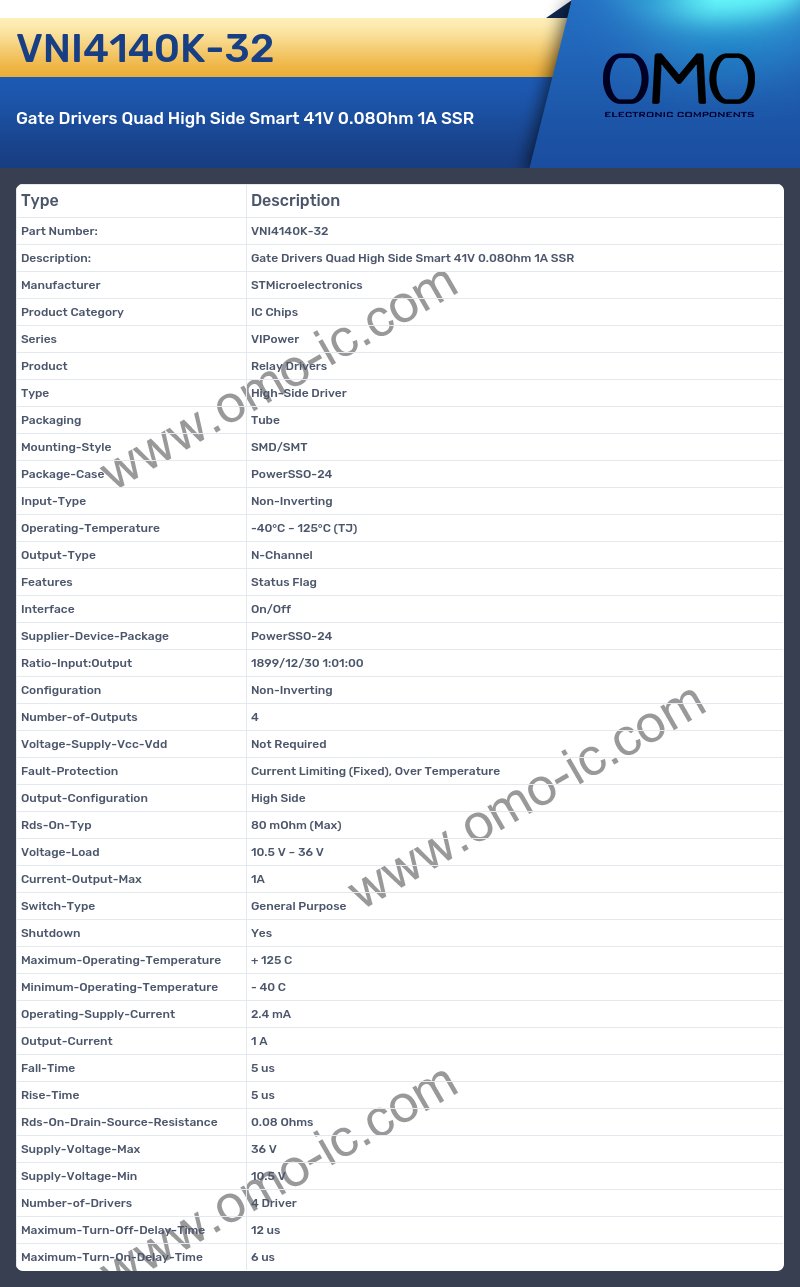

VNI4140K-32 Image

VNI4140K-32 Specifications

• Manufacturer STMicroelectronics
• Product Category IC Chips
• Series VIPower
• Product Relay Drivers
• Type High-Side Driver
• Packaging Tube
• Mounting-Style SMD/SMT
• Package-Case PowerSSO-24
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 125°C (TJ)
• Output-Type N-Channel
• Features Status Flag
• Interface On/Off
• Supplier-Device-Package PowerSSO-24
• Ratio-Input:Output 1899/12/30 1:01:00
• Configuration Non-Inverting
• Number-of-Outputs 4
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature
• Output-Configuration High Side
• Rds-On-Typ 80 mOhm (Max)
• Voltage-Load 10.5 V ~ 36 V
• Current-Output-Max 1A
• Switch-Type General Purpose
• Shutdown Yes
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 2.4 mA
• Output-Current 1 A
• Fall-Time 5 us
• Rise-Time 5 us
• Rds-On-Drain-Source-Resistance 0.08 Ohms
• Supply-Voltage-Max 36 V
• Supply-Voltage-Min 10.5 V
• Number-of-Drivers 4 Driver
• Maximum-Turn-Off-Delay-Time 12 us
• Maximum-Turn-On-Delay-Time 6 us
