VNL5050N3TR-E

VNL5050N3TR-E Overview

Product belongs to the OMNIFET III, VIPower series. This product is categorized as Driver ICs - Various Type: Low Side Driver Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006632 oz SMD/SMT Mounting-Style SOT-223 The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: SOT-223 The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: 3.5 V ~ 5.5 V The Low Side. The 50 mOhm (Max). Voltage-Load range is 36V (Max). Our product delivers a 19A of 50mA for efficient power management. The Switch-Type is General Purpose. Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C 30 uA is 92 nA. This product has a 10 us of 16 ns. This product has a 10 us of 16 ns. Maximum supply voltage of 5.5 V Minimum supply voltage is 3.5 V

VNL5050N3TR-E Image

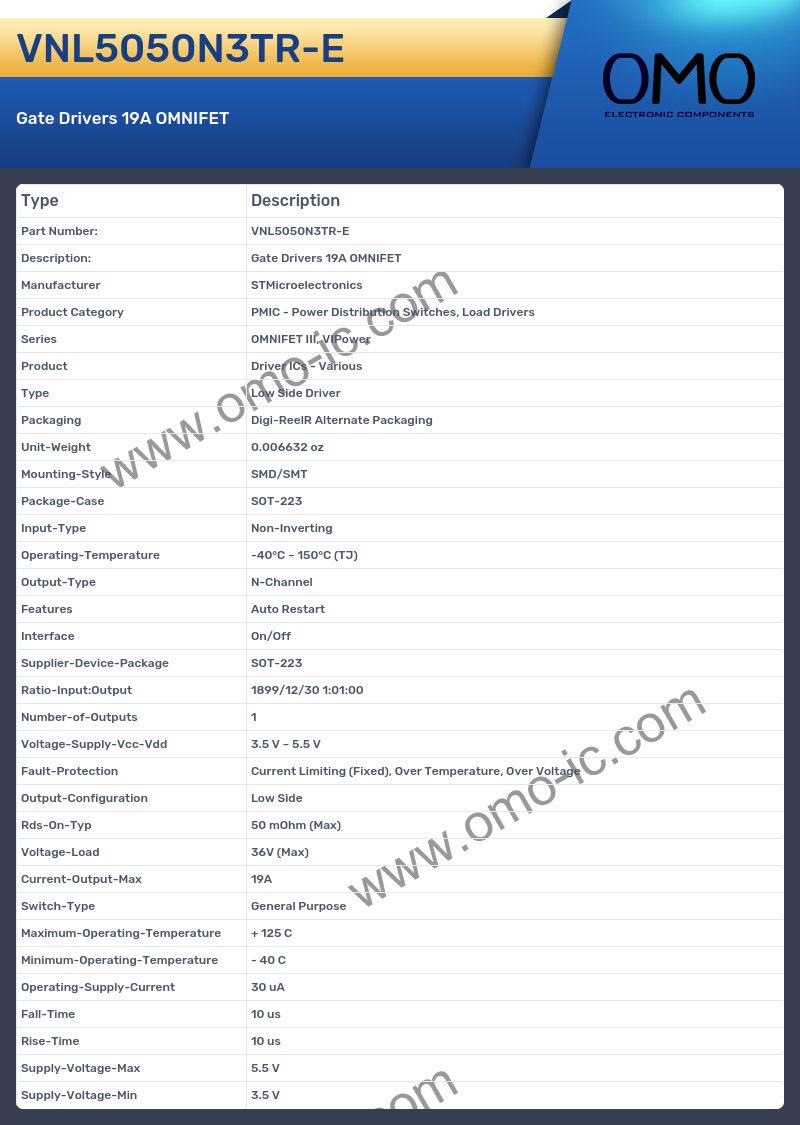

VNL5050N3TR-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series OMNIFET III, VIPower
• Product Driver ICs - Various
• Type Low Side Driver
• Packaging Digi-ReelR Alternate Packaging
• Unit-Weight 0.006632 oz
• Mounting-Style SMD/SMT
• Package-Case SOT-223
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features Auto Restart
• Interface On/Off
• Supplier-Device-Package SOT-223
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd 3.5 V ~ 5.5 V
• Fault-Protection Current Limiting (Fixed), Over Temperature, Over Voltage
• Output-Configuration Low Side
• Rds-On-Typ 50 mOhm (Max)
• Voltage-Load 36V (Max)
• Current-Output-Max 19A
• Switch-Type General Purpose
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Operating-Supply-Current 30 uA
• Fall-Time 10 us
• Rise-Time 10 us
• Supply-Voltage-Max 5.5 V
• Supply-Voltage-Min 3.5 V
