VNS3NV04-E

VNS3NV04-E Overview

Product belongs to the OMNIFET II, VIPower series. Tube is the packaging method for this product 8-SOIC (0.154", 3.90mm Width) The Non-Inverting for this product is CMOS/TTL. Operational temperature range: -40°C ~ 150°C (TJ) Output-Type: N-Channel Interface: On/Off Supplier device package: 8-SO The Ratio-Input:Output for this product is 1899/12/30 1:01:00. Number-of-Outputs: 1 Supply Voltage: Not Required The Low Side. The 120 mOhm (Max). Voltage-Load range is 36V (Max). Our product delivers a 3.5A of 50mA for efficient power management. The Switch-Type is General Purpose.

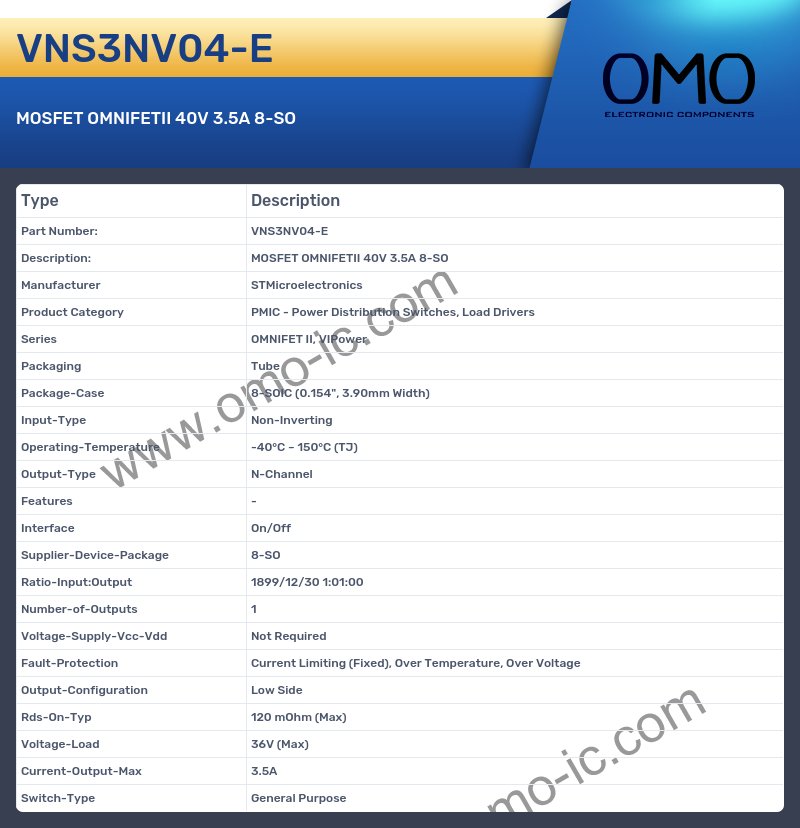

VNS3NV04-E Image

VNS3NV04-E Specifications

• Manufacturer STMicroelectronics
• Product Category PMIC - Power Distribution Switches, Load Drivers
• Series OMNIFET II, VIPower
• Packaging Tube
• Package-Case 8-SOIC (0.154", 3.90mm Width)
• Input-Type Non-Inverting
• Operating-Temperature -40°C ~ 150°C (TJ)
• Output-Type N-Channel
• Features -
• Interface On/Off
• Supplier-Device-Package 8-SO
• Ratio-Input:Output 1899/12/30 1:01:00
• Number-of-Outputs 1
• Voltage-Supply-Vcc-Vdd Not Required
• Fault-Protection Current Limiting (Fixed), Over Temperature, Over Voltage
• Output-Configuration Low Side
• Rds-On-Typ 120 mOhm (Max)
• Voltage-Load 36V (Max)
• Current-Output-Max 3.5A
• Switch-Type General Purpose
