X0205MA 2BL2 Overview

Product belongs to the X02 series. Tape & Box (TB) Alternate Packaging is the packaging method for this product Weight of 0.016000 oz Through Hole Mounting-Style TO-226-3, TO-92-3 (TO-226AA) (Formed Leads) Operational temperature range: -40°C ~ 125°C Through Hole mounting type Supplier device package: TO-92-3 5mA of Current-Hold-Ih-Max The Voltage-Off-State is 600V. Voltage-Gate-Trigger-Vgt-Max 800mV 50μA of Current-Gate-Trigger-Igt-Max Maximum 1.45V On-State Voltage Its 800mA Current-On-State-It-AV-Max 1.25A is the maximum Current-On-State-It-RMS. 5μA is the Current-Off-State-Max; This product can handle a non-repetitive surge current of 22.5A, 25A for 50-60Hz Itsm. SCR-Type: Sensitive Gate; Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 600 V Rated Repetitive Off-State Voltage VDRM; 5 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 0.8 V on this product. Gate-Trigger-Current-Igt: 0.05 mA; 1.25 A RMS Current On-State 25 A Non-Repetitive On-State Current The 0.005 mA Off-State Leakage Current in VDRM and IDRM. The Maximum-Gate-Peak-Inverse-Voltage is 8 V. Vf-Forward-Voltage: 1.45 V

X0205MA 2BL2 Image

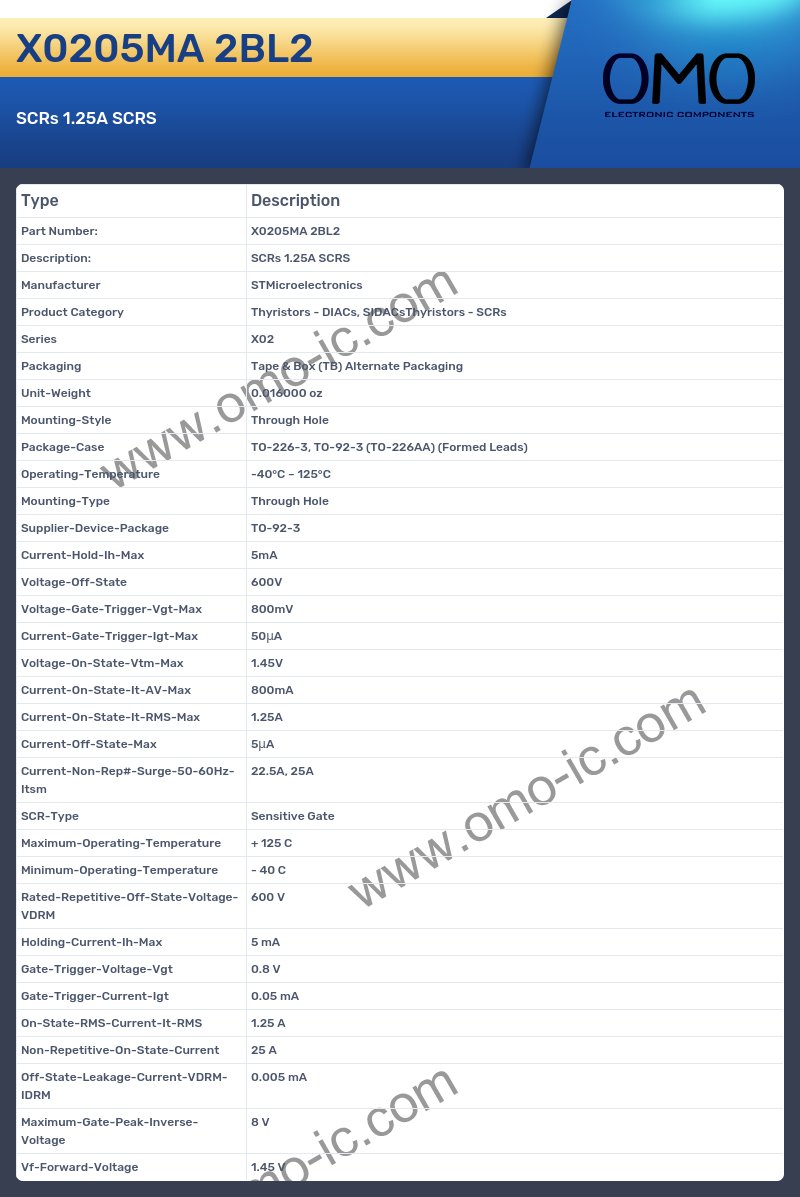

X0205MA 2BL2 Specifications

• Manufacturer STMicroelectronics
• Product Category Thyristors - DIACs, SIDACsThyristors - SCRs
• Series X02
• Packaging Tape & Box (TB) Alternate Packaging
• Unit-Weight 0.016000 oz
• Mounting-Style Through Hole
• Package-Case TO-226-3, TO-92-3 (TO-226AA) (Formed Leads)
• Operating-Temperature -40°C ~ 125°C
• Mounting-Type Through Hole
• Supplier-Device-Package TO-92-3
• Current-Hold-Ih-Max 5mA
• Voltage-Off-State 600V
• Voltage-Gate-Trigger-Vgt-Max 800mV
• Current-Gate-Trigger-Igt-Max 50μA
• Voltage-On-State-Vtm-Max 1.45V
• Current-On-State-It-AV-Max 800mA
• Current-On-State-It-RMS-Max 1.25A
• Current-Off-State-Max 5μA
• Current-Non-Rep#-Surge-50-60Hz-Itsm 22.5A, 25A
• SCR-Type Sensitive Gate
• Maximum-Operating-Temperature + 125 C
• Minimum-Operating-Temperature - 40 C
• Rated-Repetitive-Off-State-Voltage-VDRM 600 V
• Holding-Current-Ih-Max 5 mA
• Gate-Trigger-Voltage-Vgt 0.8 V
• Gate-Trigger-Current-Igt 0.05 mA
• On-State-RMS-Current-It-RMS 1.25 A
• Non-Repetitive-On-State-Current 25 A
• Off-State-Leakage-Current-VDRM-IDRM 0.005 mA
• Maximum-Gate-Peak-Inverse-Voltage 8 V
• Vf-Forward-Voltage 1.45 V
