| Mfr. #: | Z0109MN 5AA4 |
|---|---|
| メーカー: | STMicroelectronics |
| 説明: | TRIAC SENS GATE 600V 1A SOT223 |
| ライフサイクル: | メーカー新製品 |
| データシート: | Z0109MN 5AA4 データシート |
Product belongs to the Z01 series. Digi-ReelR Alternate Packaging is the packaging method for this product Weight of 0.006632 oz SMD/SMT Mounting-Style TO-261-4, TO-261AA Surface Mount mounting type Supplier device package: SOT-223 Configuration Single 10mA of Current-Hold-Ih-Max The Voltage-Off-State is 600V. Voltage-Gate-Trigger-Vgt-Max 1.3V 10mA of Current-Gate-Trigger-Igt-Max 1A is the maximum Current-On-State-It-RMS. This product can handle a non-repetitive surge current of 8A, 8.5A for 50-60Hz Itsm. Logic - Sensitive Gate Triac-Type Maximum operating temperature of + 125 C Minimum operating temperature: - 40 C The 600 V Rated Repetitive Off-State Voltage VDRM; 10 mA Maximun Holding Current of Ih The Gate-Trigger-Voltage-Vgt attribute is 1.3 V on this product. Gate-Trigger-Current-Igt: 10 mA; 8.5 A Non-Repetitive On-State Current The 5 uA Off-State Leakage Current in VDRM and IDRM. The 1.56 V On-State-Voltage
Image shown is a representation only. Exact specifications should be obtained from the product data sheet.

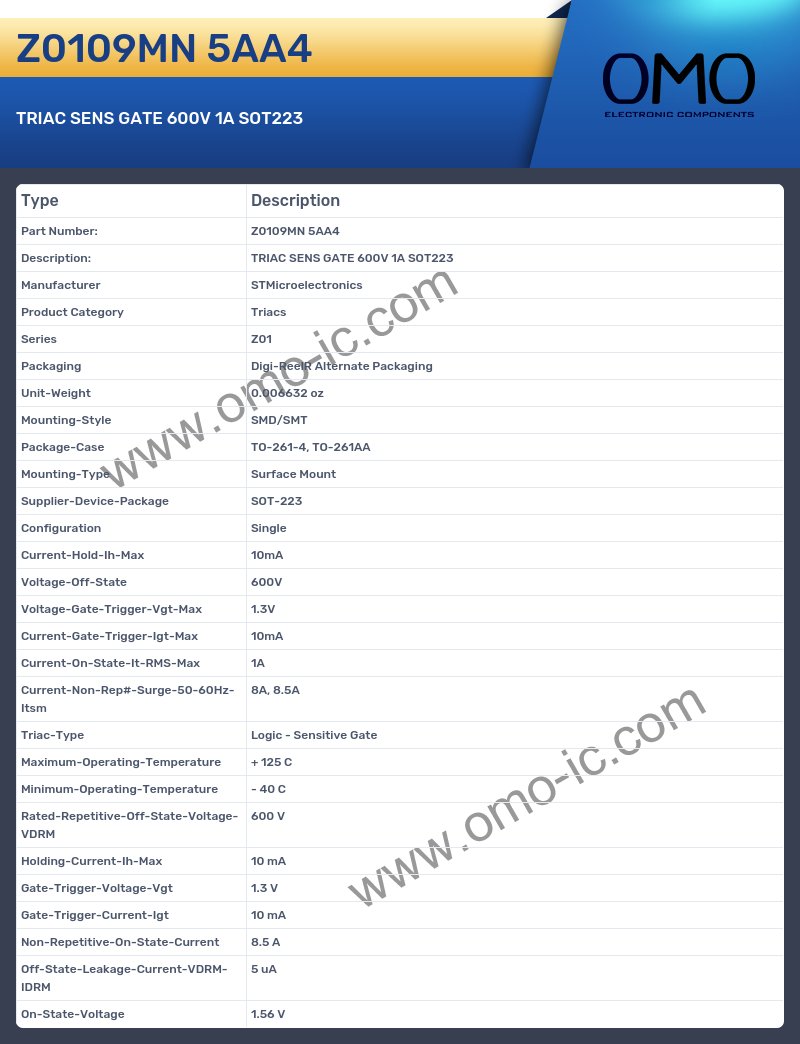

Z0109MN 5AA4 Specifications
A: At what frequency does the Series?
Q: The product Series is Z01.
A: Is the cutoff frequency of the product Packaging?
Q: Yes, the product's Packaging is indeed Digi-ReelR Alternate Packaging
A: Is the cutoff frequency of the product Unit-Weight?
Q: Yes, the product's Unit-Weight is indeed 0.006632 oz
A: At what frequency does the Mounting-Style?
Q: The product Mounting-Style is SMD/SMT.
A: Is the cutoff frequency of the product Package-Case?
Q: Yes, the product's Package-Case is indeed TO-261-4, TO-261AA
A: Is the cutoff frequency of the product Mounting-Type?
Q: Yes, the product's Mounting-Type is indeed Surface Mount
A: Is the cutoff frequency of the product Supplier-Device-Package?
Q: Yes, the product's Supplier-Device-Package is indeed SOT-223
A: At what frequency does the Configuration?
Q: The product Configuration is Single.
A: What is the Current-Hold-Ih-Max of the product?
Q: The Current-Hold-Ih-Max of the product is 10mA.
A: Is the cutoff frequency of the product Voltage-Off-State?
Q: Yes, the product's Voltage-Off-State is indeed 600V
A: What is the Voltage-Gate-Trigger-Vgt-Max of the product?
Q: The Voltage-Gate-Trigger-Vgt-Max of the product is 1.3V.
A: At what frequency does the Current-Gate-Trigger-Igt-Max?
Q: The product Current-Gate-Trigger-Igt-Max is 10mA.
A: Is the cutoff frequency of the product Current-On-State-It-RMS-Max?
Q: Yes, the product's Current-On-State-It-RMS-Max is indeed 1A
A: At what frequency does the Current-Non-Rep#-Surge-50-60Hz-Itsm?
Q: The product Current-Non-Rep#-Surge-50-60Hz-Itsm is 8A, 8.5A.
A: What is the Triac-Type of the product?
Q: The Triac-Type of the product is Logic - Sensitive Gate.
A: Is the cutoff frequency of the product Maximum-Operating-Temperature?
Q: Yes, the product's Maximum-Operating-Temperature is indeed + 125 C
A: What is the Minimum-Operating-Temperature of the product?
Q: The Minimum-Operating-Temperature of the product is - 40 C.
A: What is the Rated-Repetitive-Off-State-Voltage-VDRM of the product?
Q: The Rated-Repetitive-Off-State-Voltage-VDRM of the product is 600 V.
A: What is the Holding-Current-Ih-Max of the product?
Q: The Holding-Current-Ih-Max of the product is 10 mA.
A: Is the cutoff frequency of the product Gate-Trigger-Voltage-Vgt?
Q: Yes, the product's Gate-Trigger-Voltage-Vgt is indeed 1.3 V
A: What is the Gate-Trigger-Current-Igt of the product?
Q: The Gate-Trigger-Current-Igt of the product is 10 mA.
A: At what frequency does the Non-Repetitive-On-State-Current?
Q: The product Non-Repetitive-On-State-Current is 8.5 A.
A: What is the Off-State-Leakage-Current-VDRM-IDRM of the product?
Q: The Off-State-Leakage-Current-VDRM-IDRM of the product is 5 uA.
A: At what frequency does the On-State-Voltage?
Q: The product On-State-Voltage is 1.56 V.
